RAS System Special s Shape AS-MBBR78 Media For Aquaculture Wastewater
- FOB Price
US $160.010 - 70 cubic meter
US $150.071 - 1000 cubic meter
- group name
- RAS System Special S Shape AS-MBBR78 Media
- Min Order
- 10 cubic meter
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-MBBR 78S
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 16:30:38 GMT
Paramtents
Membrane-Forming Time 3-15days
Applicable Temperature 5-60℃
Life Span More than 20 years
Packging & Delivery
-
Min Order10 cubic meter
Briefing
Customize with ODM/OEM - Compact MBBR Media AS-MBBR 78S | Robust 1600 m2/m3 for Aquaculture Wastewater
Detailed

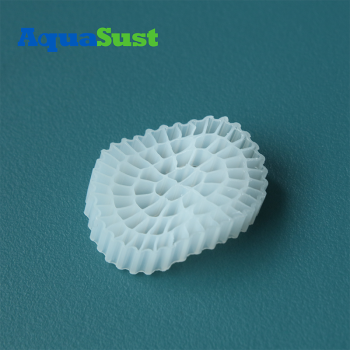

MBBR Media AS-MBBR 78S Introduction
Category: Biochemical Tank - MBBR Media
Band: AquaSust
Model: AS-MBBR 78S
Size: Φ25*4mm
Material: 100% White Virgin HDPE
Weight: 125KG/CBM
Densilty:0.96-0.98g/cm3
Weight: 125KG/CBM
Surface Area:>1600m2/m3
Packing Numbers:>260000pcs/m³
Dosing Ratio: 15-65%
Membrane-Forming Time:3-15days
Applicable Temperature:5-60℃
Nitrification Effciency :400-1200gNH4 N/M³.d
BOD5 Efciency:2000-10000g BOD5/M³.d
COD5 Effciency:2000-15000g COD5/M³.d
Applicable Temperature:5-60°C
Life-Span:>20 years
MBBR Media AS-MBBR 78S offers several advantages
1. Better Water Treatment Efficiency:
The unique design and material composition of the AS-MBBR78 media enhance the overall efficiency of water treatment processes.
The increased surface area supports a higher density of microorganisms, leading to more effective breakdown of organic matter and nutrients.
This results in improved water quality, which is crucial for the health and growth of aquatic organisms in RAS systems.
2. Better Fluidization Due to Unique S Shape:
The special S shape of the AS-MBBR78 media promotes better fluidization within the reactor.
This design ensures more uniform distribution and movement of the media, optimizing contact time between the biofilm and the water.
Improved fluidization enhances the efficiency of biological processes, such as nitrification and organic matter decomposition.
3. Not Easy to Stick to the Walls of Aerobic and Anaerobic Tanks:
The media's design and material properties prevent it from sticking to the walls of both aerobic and anaerobic tanks.
This non-sticking feature helps maintain consistent and efficient operation of the reactor, reducing maintenance needs and preventing the formation of dead zones.
4. Lower Weight per Square Meter Surface:
The AS-MBBR78 media is designed to be lightweight, which reduces the overall weight per square meter of surface area.
This lightweight nature translates to lower energy consumption, as less energy is required to achieve and maintain fluidization.
Reduced energy usage leads to lower running costs, making the system more cost-effective and energy-efficient.
MBBR Media AS-MBBR 78S In Aquaculture Wastewater Application
1. Highly efficient removal of ammonia and organic matter:
The AquaSust MBBR 19 provides an ideal growth environment for nitrifying and denitrifying flora by providing a high surface area bio-carrier. The system efficiently removes ammonia and organic matter from aquaculture wastewater and ensures that effluent quality standards are met.
2. High system stability:
The AquaSust MBBR 19 has a simple design, is easy to operate and maintain, and is highly resilient to fluctuations in wastewater flow and pollutant concentrations. This is especially important for seasonal changes and sudden load increases in aquaculture wastewater treatment.
3. Low maintenance costs:
The AquaSust MBBR 19 system has low maintenance costs because the MBBR system does not require return sludge and the continuous movement of the carrier reduces the risk of clogging. Simple periodic inspections and maintenance are all that is required to keep the system running efficiently.
4. Small footprint:
The AquaSust MBBR 19 features a compact design with a small footprint, making it ideal for aquaculture farms with limited space. This allows the farm to achieve efficient wastewater treatment in a limited space.
5. Modular design for flexible expansion:
The modular design of the AquaSust MBBR 19 allows for flexible adjustment of the treatment scale according to actual needs. Users can easily add or reduce modules, thus realizing the flexible regulation of treatment capacity to meet the needs of aquaculture farms of different sizes.
6. Environmentally friendly:
By efficiently removing pollutants, the AquaSust MBBR 19 helps reduce the environmental impact of aquaculture wastewater, protects aquatic ecosystems, and supports sustainable aquaculture development.
Parameter
|
No.
|
Item No.
|
Diameter * Height
|
Surface Area |
Rooms
|
Number of units per m3 |
|
1
|
AS-MBBR 04
|
11 mm * 7 mm
|
＞900 m2 / m3 |
4 Rooms
|
940000pcs |
2 | AS-MBBR 05 | 11 mm * 7 mm | ＞1000 m2 / m3 | 5 Rooms | 980000pcs |
3 | AS-MBBR 06 | 16 mm * 10 mm | ＞800 m2/ m3 | 6 Rooms | 260000pcs |
4 | AS-MBBR 08 | 10 mm * 5 mm | ＞3500 m2/ m3 | 8 Rooms | 1540000pcs |
5 | AS-MBBR 19 | 25 mm * 12 mm | ＞650 m2/ m3 | 19 Rooms | 118000pcs |
6 | AS-MBBR 37 | 25 mm * 12 mm | ＞800 m2/ m3 | 37 Rooms | 118000pcs |
7 | AS-MBBR 38 | 25 mm * 10 mm | ＞800 m2/ m3 | 38 Rooms | 118000pcs |
8 | AS-MBBR 40 | 15 mm * 15 mm | ＞900 m2 / m3 | 40 Rooms | 230000pcs |
9 | AS-MBBR 61 | 25 mm * 4 mm | ＞1250 m2 / m3 | 61 Rooms | 20000pcs |
10 | AS-MBBR 64 | 25 mm * 4 mm | ＞1200 m2/ m3 | 64 Rooms | 20000pcs |
11 | AS-MBBR 78 | 25 mm * 4 mm | ＞1600 m2 / m3 | 78 Rooms | 210000pcs |
12 | AS-MBBR 78S | 25mm*4mm | ＞1600 m2 / m3 | 78 Rooms | 260000pcs |
