AS-MBBR37 MBBR Media For Municipal Wastewater Treatment
- FOB Price
US $146.010 - 70 cubic meter
US $136.071 - 1000 cubic meter
- group name
- AS-MBBR 37 Media Patent
- Min Order
- 10 cubic meter
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-MBBR37
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:02:41 GMT
Paramtents
Membrane-Forming Time 3-15days
Applicable Temperature 5-60℃
Life Span More than 20 years
Packging & Delivery
-
Min Order10 cubic meter
Briefing
Discover AS-MBBR37 MBBR Media: High surface area, OEM/ODM supplier for Municipal Wastewater Treatment
Detailed
MBBR Media AS-MBBR37 Introduction
Category: Biochemical Tank - MBBR Media
Band: AquaSust
Model: AS-MBBR37
Size: Φ25*12mm
Material: 100% White Virgin HDPE
Densilty: 0.96-0.98g/cm3
Surface Area: >800m2/m3
Membrane-Forming Time: 3-15days
Applicable Temperature: 5-60℃
MBBR Media AS-MBBR37 Advantage
1. Effectively remove COD: MBBR37 uses a special microbial culture medium, which can effectively decompose and adsorb organic matter in brewery wastewater, especially COD, thereby reducing the pollution level of wastewater.
2. Improve the biodegradability of wastewater: MBBR37 can improve the biodegradability of wastewater through the action of microorganisms, making it easier to biologically treat, thereby improving the treatment effect of wastewater.
3. Reduce the suspended matter content of wastewater:MBBR37 can effectively remove suspended matter in wastewater through the adsorption and precipitation of microorganisms, thereby reducing the turbidity and color of wastewater and improving the water quality of wastewater.
4. Reduce treatment costs: MBBR37 uses microbial culture medium, which can effectively reduce the consumption of drugs and energy in the treatment process, thereby reducing treatment costs.
5. Improve treatment efficiency:MBBR37 uses microbial culture medium, which can improve the activity and reproduction ability of microorganisms, thereby improving the treatment efficiency of wastewater.
6. Reduce secondary pollution:MBBR37 uses microbial culture medium, which can effectively reduce secondary pollution in the wastewater treatment process, thereby protecting the environment.
7. Strong adaptability:MBBR37 can adapt to different water quality and environmental conditions, has strong adaptability and stability, and can be widely used in different breweries.
8. Easy to maintain and manage:MBBR37 uses microbial culture medium, which can reduce the maintenance and management costs of the equipment and also increase the service life of the equipment.
MBBR Media AS-MBBR37 For Municipal Wastewater Treatment Application
1. Efficient removal of pollutants:
Organic matter removal: Provide large surface area for microorganisms to attach, enhance the biodegradation efficiency, and effectively remove organic matter in wastewater.
Nitrogen and phosphorus removal: Through nitrification and denitrification process, reduce the concentration of nitrogen and phosphorus in the wastewater, effectively preventing the eutrophication of the water body.
2. Small footprint:
MBBR system is compact in design, and compared with the traditional activated sludge method, the footprint is greatly reduced, which is especially suitable for urban areas where land resources are tight.
3. Easy operation:
The system is easy to operate, with a high degree of automation and low maintenance cost, which is suitable for the long-term stable operation of municipal wastewater treatment plants.
4.High system stability:
The movement of the medium helps prevent clogging and scaling, maintains the activity of the biofilm, and improves the system's treatment stability and shock load resistance.
5. Convenient expansion:
The expansion of the system can be easily realized by increasing the filling amount of MBBR media or expanding the reactor volume to adapt to the needs of different treatment capacity.
6. Low energy consumption:
The highly efficient biofilm reaction process reduces the need for aeration, which lowers energy consumption and saves operating costs.
7. Environmental protection and high efficiency:
The materials used are usually high-density polyethylene (HDPE) or polypropylene (PP), which are corrosion-resistant, ageing-resistant, have a long service life and are harmless to the environment.
Parameter
|
No.
|
Item No.
|
Diameter * Height
|
Surface Area |
Rooms
|
Number of units per m3 |
|
1
|
AS-MBBR 04
|
11 mm * 7 mm
|
＞900 m2 / m3 |
4 Rooms
|
940000pcs |
2 | AS-MBBR 05 | 11 mm * 7 mm | ＞1000 m2 / m3 | 5 Rooms | 980000pcs |
3 | AS-MBBR 06 | 16 mm * 10 mm | ＞800 m2/ m3 | 6 Rooms | 260000pcs |
4 | AS-MBBR 08 | 10 mm * 5 mm | ＞3500 m2/ m3 | 8 Rooms | 1540000pcs |
5 | AS-MBBR 19 | 25 mm * 12 mm | ＞650 m2/ m3 | 19 Rooms | 118000pcs |
6 | AS-MBBR 37 | 25 mm * 12 mm | ＞800 m2/ m3 | 37 Rooms | 118000pcs |
7 | AS-MBBR 38 | 25 mm * 10 mm | ＞800 m2/ m3 | 38 Rooms | 118000pcs |
8 | AS-MBBR 40 | 15 mm * 15 mm | ＞900 m2 / m3 | 40 Rooms | 230000pcs |
9 | AS-MBBR 61 | 25 mm * 4 mm | ＞1250 m2 / m3 | 61 Rooms | 20000pcs |
10 | AS-MBBR 64 | 25 mm * 4 mm | ＞1200 m2/ m3 | 64 Rooms | 20000pcs |
11 | AS-MBBR 78 | 25 mm * 4 mm | ＞1600 m2 / m3 | 78 Rooms | 210000pcs |
Recommended accessories:

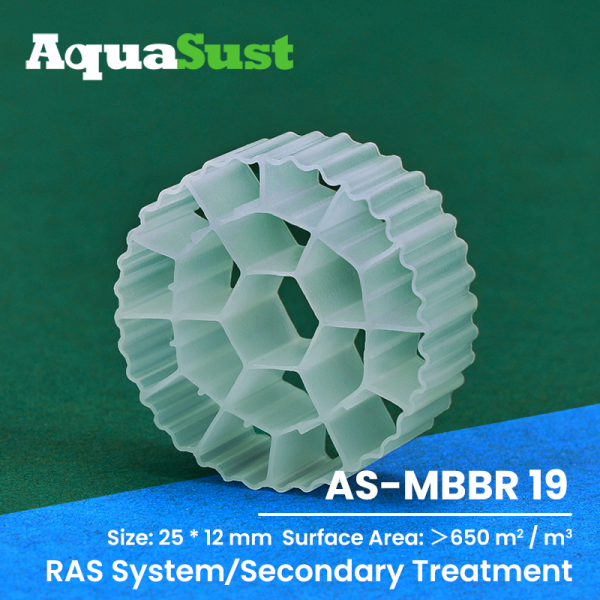

Customize with ODM/OEM - Compact MBBR Media AS-MBBR19 | Robust 650 m2/m3 for Secondary Treatment

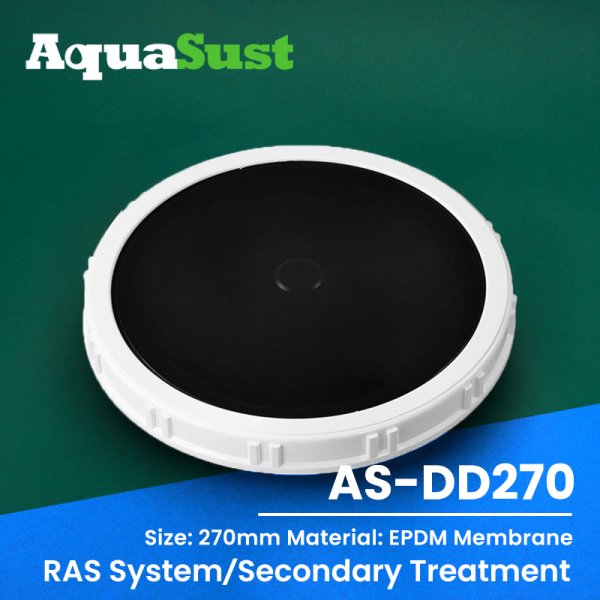

AS-DD270 Fine Bubble Diffuser: Uniform Bubbles, High Aeration Efficiency deal for Textile & Dyeing Secondary Treatment.

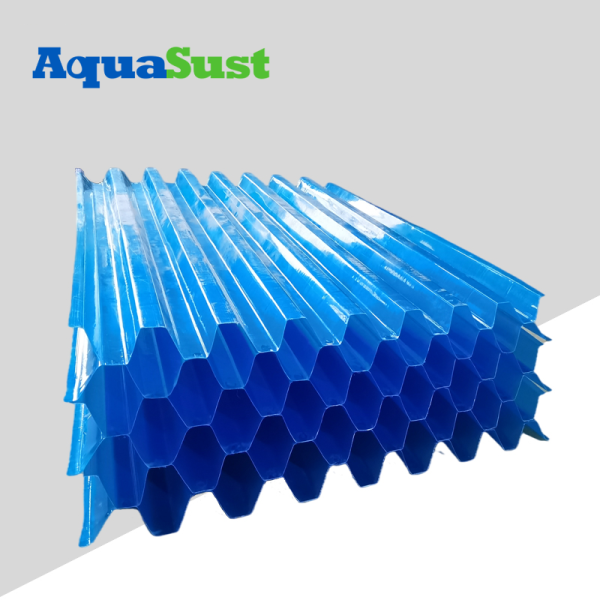

Tube Settler AS-35PP Superior shock and corrosion resistance for efficient secondary treatment of textile and dyeing wastewater

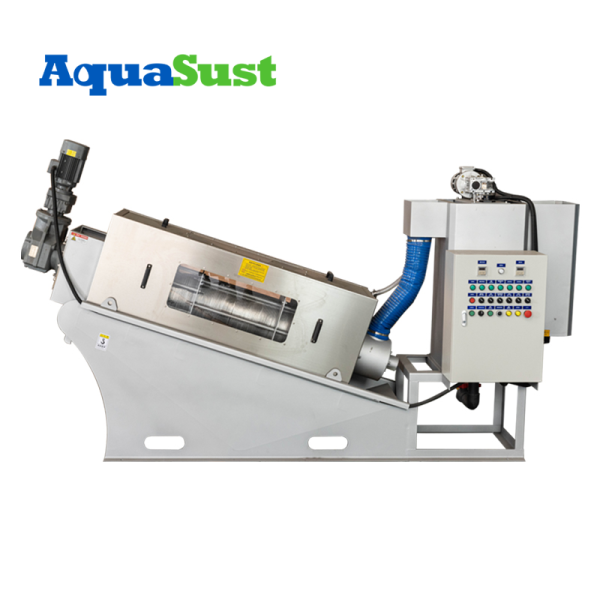

Innovative AS-NH301 Mobile Sludge Dewatering Unit - Perfect for Dairy Wastewater Treatment.
