Plate Aeration Diffuser for Power Plant Wastewater Treatment
- group name
- Plate Aeration Diffuser
- Min Order
- 1 piece
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-PD660
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 18:15:54 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Elevate your water treatment efficiency with Plate Aeration Diffuser - Customizable OEM, ODM services available.
Detailed

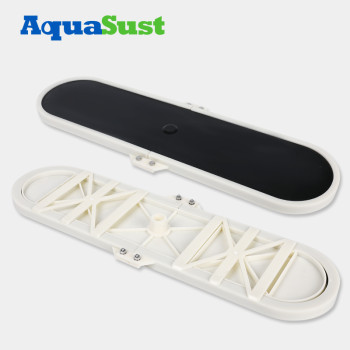

Plate Aeration Diffuser
The unique structure of this aerator design ensures that the system can maintain low energy consumption and high efficiency. When the blower is working, the bubbles produced by the aerator are uniform, forming a good lotus effect. The support plate of the microporous aerator is made of special material rubber and high quality plastic, which achieves a double balance of strength and toughness. The film is placed flat on the pallet for one pressurized film punching. Its unique opening method ensures an even distribution of bubbles produced during blower operation, achieving excellent results. Advantages include maintaining a constant oxygen transfer rate for a wide range of operating conditions and can be used in intermittent or continuous aeration systems. It features high oxygen utilization, high reliability, excellent waterproofing, and long life.
Plate Aeration Diffuser Performance Parameters
Item Number | PD660 | PD1100 |
Membrane Material | EPDM/Silicon | EPDM/Silicon |
Membrane Thickness | 1.8-2.0mm | 1.8-2.0mm |
Bubble Diameter | 0.8-1.9mm | 0.8-1.9mm |
Standard Airflow | 6m3/h | 10m3/h |
Aeration Range | 1-16m3/h | 4-32m3/h |
Resistance Loss | 2.0-4.3kPa | 2.0-4.3kPa |
Effective Service Area | 0.5-2 .5m2 | 1.0-4.0m2 |
Plate Aeration Diffuser advantage
1. The aerator system with unique design structure effectively reduces energy consumption, improves efficiency and provides a reliable guarantee for gas transmission.
2. During the operation of the blower, the aerator produces bubbles uniformly, presenting a beautiful lotus effect, promoting the dissolution of oxygen in the water and the biodegradation process.
3. This aeration method is not only suitable for intermittent operation system, but also can be easily adapted to the continuous aeration system, flexible to meet the needs of different processes.
4. Including good sealing, easy and fast installation, and easy maintenance, for the reliable operation of the system provides reliable technical support.
Plate Aeration Diffuser in Power Plant Wastewater Treatment Application
Power plant wastewater usually contains large amounts of organic matter, heavy metals and other pollutants. The application of plate aerator in power plant wastewater treatment is as follows:
1. Organic matter removal: effectively remove organic pollutants in wastewater by increasing dissolved oxygen concentration and promoting the growth and metabolism of aerobic microorganisms.
2. Ammonia nitrogen removal: enhance the activity of nitrifying bacteria, accelerate the oxidation process of ammonia nitrogen, reduce the concentration of ammonia nitrogen in wastewater.
3. Heavy metal treatment: the plate aerator's efficient oxygen transfer capability can promote the oxidative precipitation of certain heavy metals, helping to remove heavy metal pollutants in wastewater.
4. System maintenance: Reduce system downtime and maintenance due to insufficient oxygen supply, ensure the continuity and stability of the wastewater treatment process.
