Low Energy Consumption Deep Dish Disc Diffuser for Electronic Industry Wastewater Treatment
- FOB Price
US $10.0100 - 1000 piece
US $8.01001 - 10000 piece
- group name
- Disc Diffuser
- Min Order
- 100 piece
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-DD215
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:47:53 GMT
Paramtents
Membrane Material EDPM, Rubber,Silica Gel
Connector 3/4"NPT male thread
Plate Color Black, White, Gray, Black
Packging & Delivery
-
Min Order100 piece
Briefing
Revolutionize wastewater treatment with our OEM Deep Dish Disc Diffuser. Low energy consumption, high efficiency for Electronic Industry.
Detailed

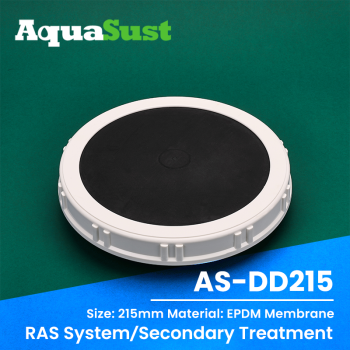

Disc Diffuser AS-DD215 Introduction
Category: Biochemical Tank - Aeration Diffuser
Brand: AquaSust
Model: AS-DD215
Size: 8 inch
Material: EDPM, Rubber, Silica Gel
Disc Diffuser AS-DD215 Advantage
As a professional manufacturer of Disc Diffuser, our products are made of EPDM material with "bimodal" molecular weight distribution. This unique choice of material not only gives our products excellent strength and high elasticity but also provides good tear resistance. What's more, our products are designed with a unique anti-clogging concept that ensures that there is no risk of hole clogging for 8 years, which greatly enhances the product's service life and reliability. In addition, our oil-free formulation reduces the impact of sewage media on the rubber compound, further ensuring product stability and durability in a variety of environments. These features combine to make our disk aerators an efficient, reliable, and low-maintenance solution in wastewater treatment.
Disc Diffuser AS-DD215 Electronic Industry Wastewater Treatment Application
1. Gas transfer: in electronic industrial wastewater treatment, it may be necessary to introduce gases (e.g., oxygen, nitrogen, etc.) into the wastewater to promote redox reactions, regulate the gas-phase composition of the water, or to achieve other treatment objectives. disc diffuser, by injecting gas bubbles into the wastewater, provides an effective means of transferring the gases into full contact with the wastewater to achieve the desired chemical reaction or treatment process.
2. Mixing: During wastewater treatment, electronic industry wastewater may contain a variety of organic and inorganic contaminants that need to be evenly mixed to ensure treatment effectiveness. By generating air bubbles and causing convection, the disc diffuser helps to mix the different components of the wastewater, preventing the deposition and stratification of pollutants in the water, thus improving wastewater treatment efficiency.
3. Redox Reaction: Some electronic industrial wastewater may contain organic or inorganic pollutants that require a redox reaction for effective removal. disc diffuser can be used to introduce oxygen or other gases to increase the oxygen content in the wastewater and promote the redox reaction, thereby reducing the concentration of pollutants in the wastewater.
4. Gas Blowdown: During the wastewater treatment process, it may be necessary to use a gas blowdown method to clean the wastewater treatment equipment or media in order to remove dirt or sediments adhering to the surface. disc diffuser can provide the required gas for effective cleaning and maintenance of the wastewater treatment equipment.
5. pH Adjustment: Sometimes, in electronic industrial wastewater treatment, it may be necessary to adjust the pH of the wastewater to meet treatment requirements. By introducing a suitable gas, such as carbon dioxide, the disc diffuser can achieve pH adjustment of the wastewater, thus improving treatment results.
Parameter
|
No.
|
Item No.
|
AS-DD215
|
|
1
|
Bubble Type
|
Fine Bubble
|
2 | Plate Diameter | 215mm |
3 | Membrane Diameter | 8 inch |
4 | Membrane Material | EDPM, Rubber,Silica Gel |
5 | Base Material | ABS, ABS + Glass Fibre，PP PP+ Glass Fibre |
6 | Connector | 3/4"NPT male thread |
7 | Weight | 0.42KG |
8 | Plate Color | Black, White, Gray, Black |
9 | Membrane Thickness | 2mm |
10 | Bubble Size | 1-2mm |
11 | Design Flow | 1.5-2.5 m3/h |
12 | Flow Range | 1-6 m3/h |
13 | SOTE | ≥38% |
14 | SOTR | ≥0.31kg O2/h |
15 | SAE | ≥8.9kg O2/kw*h |
16 | Headloss | 1500-4300Pa |
17 | Service Area | 0.2-0.64 m2/pcs |
18 | Service Life | > 7years |
