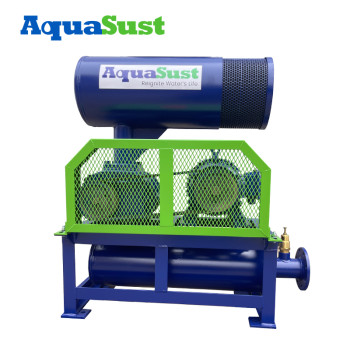

High-Efficiency Roots Blowers For Industrial Wastewater Treatment

group name: Roots Blower

Min Order: 1 piece

brand name: AquaSust Wastewater Treatment Solutions

model: AS-SL7018

Nearest port for product export: shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Sat, 18 Jan 2025 11:46:36 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Discover high-efficiency Roots blowers for industrial wastewater treatment - OEM & ODM solutions available!

Detailed

Working Conditions and Principles

There are two impellers on two parallel shafts, and there is always a small gap between the impellers and the inner hole surface of the oval case and the impellers, because the impellers rotate at a constant speed in the opposite direction to each other, so that a certain amount of gas surrounded by the case and the impellers is transported from the side of the inhalation to the side of the discharging.

The impellers always keep the correct phase and do not collide with each other, so it can be high speed and does not need internal lubrication, and the structure is simple, the operation is smooth, the performance is stable, and it is suitable for many purposes, and it has been used in a wide range of fields.

Product Features

1. The impeller and shaft adopt the structure form of integral casting, with good overall machining precision.

2. Helical gear structure, smooth transmission, low noise.

3. Adopting CR brand fluoroelastomer oil seals and labyrinth air seals made of PTFE, which have good abrasion resistance and high-temperature resistance.

4. The gear ends use double-row ball bearings for durability.

5. Cylindrical roller bearings are used at the drive end. Its ability to withstand vertical loads is greatly enhanced.

6. Utilizes Tuthil's proprietary noise-reducing cylinder design to reduce the noise of the turbine mainframe.

7. Versatility of mounting, the blower can be mounted with the same feet for both horizontal and vertical air intake, with the ability to change the position of the drive shaft, right or left, top or bottom.

8. Dual tank structure, both at the gear end and at the drive end uses flash lubrication, better heat dissipation, and lubrication effect on bearings and gears Gear lubrication overall machining precision.

Roots Blower Applications:

Roots blower is a widely used positive displacement blower, which conveys air through two intermeshing rotors inside the casing, and is characterized by simple structure and stable operation. Roots blowers are used in a wide range of applications including, but not limited to, the following major areas:

1,Wastewater treatment: In wastewater treatment processes such as activated sludge method and biofilter, Roots blowers are used for aeration to increase dissolved oxygen in the water and help microorganisms decompose pollutants.

2,Pneumatic conveying: In the conveying system of powder and granular materials, Roots blowers can be used to provide power to convey materials through pipes to different processing stations or storage locations.

3,Aquaculture: In aquaculture, Roots blowers are used to increase oxygen, maintain water quality and promote the healthy growth of fish and other aquatic organisms.

4,Chemical and Petroleum Industry: In chemical production, Roots blowers are commonly used to provide the necessary air or other gases to support chemical reactions.

5,Metallurgical Industry: Blowers used in the iron and steel making process to provide high pressure air to support combustion.

6,Power industry: Used in coal-fired power plants to supply combustion air, improve combustion efficiency and reduce emissions.

7, Environmental protection equipment: Roots blowers are also used in some special environmental protection equipment, such as desulfurization and dust removal systems.
