Coarse Bubble Aeration

group name: Coarse Bubble Aeration

Min Order: 1 piece

brand name: AquaSust Wastewater Treatment Solutions

model: Disc stirred Diffuse

Nearest port for product export: shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Wed, 04 Dec 2024 00:45:12 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Elevate wastewater treatment efficiency with our Coarse Hole Aeration. OEM & ODM services available for global partners.

Detailed

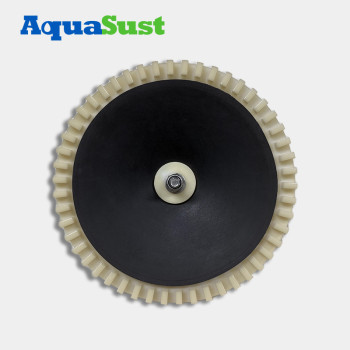

Disk stirred Diffuser-DD150

Disc stirring aerator designed as an umbrella tooth splitter, using ABS engineering plastics as the main body, and at the same time designed a double rubber plate check device to ensure that the sewage will not enter the air duct, to avoid clogging of the air duct, is a new type of anti-clogging bottom of the tank air stirring aerator, with a uniform airflow diffusion, air flushing force, corrosion resistance, etc., and effectively solves the problem of perforated aeration tube bottom of the tank stirring blockage

Disk stirred Diffuser-DD150 Performance Parameters

Item number	Disk Stirred Diffuser-DD150	Item number	Disk Stirred Diffuser-DD150
Chassis material	ABS	Service area(m2)	0.5-0.8
Disc material	EPDM	Applicable water depth(m)	6
Oxygen Utilization rate(%)	＞30	Resistance loss(pa)	＜3000
Air flow(m3/h)	1-2	Oxygen transfer efficiency	15%

Disk Stirred Diffuser-DD150 Advantage

1. High-efficiency oxidation: Through efficient gas transfer and water circulation, it can rapidly increase the dissolved oxygen content in the water body and promote the degradation and oxidation of organic matter in the water body.

2. Uniform Circulation: Uniquely designed mixing structure can realize uniform circulation of the water body, avoiding the formation of stagnant water area and maintaining the uniformity and stability of water quality.

3. Energy-saving and material-saving: Adopting advanced design and material, it can realize the characteristics of low energy consumption and low maintenance cost, saving energy and maintenance cost.

4. Stable and reliable: Structures are robust and durable, with good corrosion resistance and oxidation resistance, able to operate stably for a long time in harsh environments.

5. Strong adaptability: Applicable to different sizes and types of aquaculture tanks, able to meet the needs of various aquaculture scenarios and provide personalized solutions.

6. Environmentally friendly and healthy: purify the water by increasing the redox potential of the water body, reduce the content of pollutants in the aquaculture pool, which is conducive to the protection of the environment and the health of the ecosystem.

Disk Stirred Diffuser-DD150 aquaculture pool application

1. Water body oxidation: By providing oxygen to the aquaculture pool, Disk Stirred Diffuser-DD150 can increase the content of dissolved oxygen in the water, improve the water quality, increase the redox potential of the water body, which is conducive to the degradation of organic matter in the water body and the oxidation process.

2. Water circulation: The role of Diffuser can promote the convection and circulation of the water body of the aquaculture pond, avoid the formation of localized stagnant water areas, maintain the uniformity of the water quality, improve the uniformity of the distribution of dissolved oxygen in the water, and contribute to the growth and health of the organisms in the water body.

3. Bio-culture: Fish, shrimp and other organisms in the aquaculture tank need sufficient oxygen to maintain their life activities. the Disk Stirred Diffuser-DD150 can provide sufficient oxygen supply to promote the growth and health of organisms, and improve the yield and quality of aquaculture.

4. Water Quality Improvement: Through oxidization and circulation, Disk Stirred Diffuser-DD150 can help remove organic waste, ammonia, nitrogen and other pollutants in the aquaculture tank, purify the water quality, improve the aquaculture environment, and reduce the incidence of diseases in the aquaculture process.

5. Environmental protection: Disk Stirred Diffuser-DD150 can improve the dissolved oxygen content of the water in the breeding pond, reduce the accumulation of nitrogen, phosphorus and other pollutants, which is conducive to reducing the phenomenon of eutrophication of the water body, and protect the health of the breeding environment and the surrounding ecosystem.
