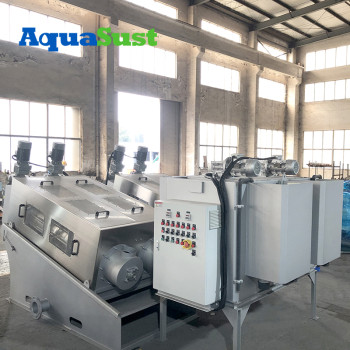

Stainless Steel Dewatering Screw Press AS-NH404 |Manufacturer Stainless Steel Dewatering Screw Press For Hospital Wastewater Treatment
- group name
- Large Sludge Dewatering Machine
- Min Order
- 1 piece
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-NH404
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Sat, 10 May 2025 07:34:05 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
AS-NH404 Stainless Steel Screw Press: OEM solution for hospital wastewater treatment.
Detailed
Dewatering Machine Screw Press
AS-NH404 Selection
(1) AS-NH404 Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
600[kg-DS/h] 10000[mg/L]
600[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=60m3/h
Treatment volume:600[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:60m*h
(2)600[kg-DS/h]x0.3%x1000x1000[g/kg]= 1800L/h
Treatment volume:600[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:1800L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.
Dewatering Machine Screw Press AS-NH404 Parameters
|
AS-NH404 SELECTION PARAMETERS
|
|
|
Processing capacity
|
360~600(DS-kg/h)
|
|
Electricity consumption
|
9kw/h
|
|
Flushing water consumption
|
400L/h
|
Polymer flocculant addition rate | For DS/T~0.3% |
Maintenance management frequency | 5min/day |
Water supply pressure | 0.1~0.2MPa |
Mud cake discharge distance from the ground | 900mm |
Mechanical size | L4500*V1800*H2100(mm) |
Net weight | 4500kg |
Operating weight | 7200kg |
