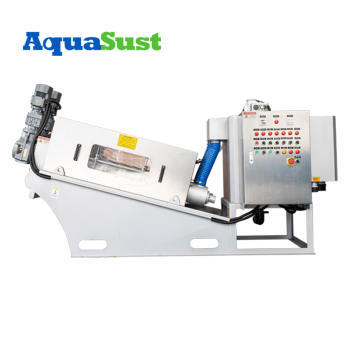

Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
- group name
- Small Sludge Dewatering Machine
- Min Order
- 1 piece
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-NH202
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:48:08 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Innovative AS-NH202 Screw Press for Landfill Leachate | OEM & ODM Options Available
Detailed
Dewatering Machine Screw Press
AS-NH202 Selection
(1) AS-NH202 Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
30[kg-DS/h] 10000[mg/L]
30[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=3m3/h
Treatment volume:30[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:3m*h
(2) 30[kg-DS/h]x0.3%x1000x1000[g/kg]= 90L/h
Treatment volume:30[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:90L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.
Dewatering Machine Screw Press AS-NH202 Parameters
|
AS-NH202 SELECTION PARAMETERS
|
|
|
Processing capacity
|
18~30(DS-kg/h)
|
|
Electricity consumption
|
1.1kw/h
|
|
Flushing water consumption
|
32L/h
|
Polymer flocculant addition rate | For DS/T~0.3% |
Maintenance management frequency | 5min/day |
Water supply pressure | 0.1~0.2MPa |
Mud cake discharge distance from the ground | 400mm |
Mechanical size | L2000*V950*H1450(mm) |
Net weight | 515kg |
Operating weight | 680kg |
