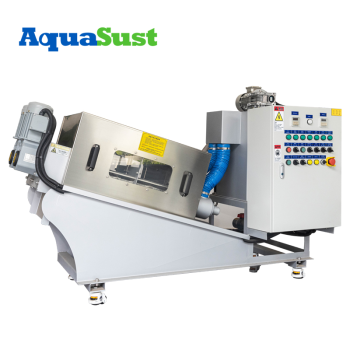

Screw Press Sludge Dewatering Machines AS-NH132 | Customized Dewatering Screw Press for Petrochemical Wastewater Treatment
- group name
- Small Sludge Dewatering Machine
- Min Order
- 1 piece
- brand name
- AquaSust Wastewater Treatment Solutions
- model
- AS-NH132
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:32:14 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
AS-NH132 Screw Press: Tailored dewatering solution for petrochemical wastewater treatment - OEM/ODM model.
Detailed
Dewatering Machine Screw Press
AS-NH132 Selection
(1) AS-NH132 Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
20[kg-DS/h] 10000[mg/L]
20[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=2m3/h
Treatment volume:20[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:2m*h
(2) 20[kg-DS/h]x0.3%x1000x1000[g/kg]= 60L/h
Treatment volume:20[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:60L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.
Dewatering Machine Screw Press AS-NH132 Parameters
|
AS-NH132 SELECTION PARAMETERS
|
|
|
Processing capacity
|
12~20(DS-kg/h)
|
|
Electricity consumption
|
0.3kw/h
|
|
Flushing water consumption
|
24L/h
|
Polymer flocculant addition rate | For DS/T~0.3% |
Maintenance management frequency | 5min/day |
Water supply pressure | 0.1~0.2MPa |
Mud cake discharge distance from the ground | 300mm |
Mechanical size | L2000*V700*H1060(mm) |
Net weight | 360kg |
Operating weight | 400kg |
