Supplier Tube Settler AS-80PP | 80mm Lamella Settler for Easy Installation and Maintenance | For Recirculating Aquaculture Systems (RAS)

FOB Price

US $35.010 - 1000 cubic meter

US $27.01001 - 10000 cubic meter

group name: PVC Tube Settler

Min Order: 10 cubic meter

brand name: AquaSust Wastewater Treatment Solutions

model: AS-80PP

Nearest port for product export: shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Thu, 21 Nov 2024 16:39:14 GMT

contact supplier

Paramtents

Material 100% New PP with UV protector
Color Blue or white
Service Life 5 to 10 years

Packging & Delivery

Min Order10 cubic meter

Briefing

Enhance your wastewater treatment efficiency with our OEM Supplier Tube Settler AS-80PP. Easy installation, easy maintenance.

Detailed

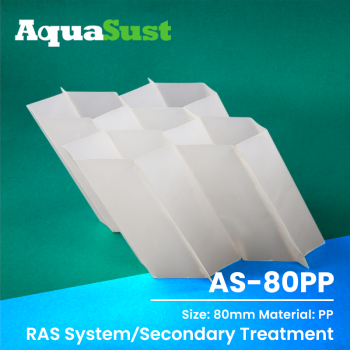

Tube Diffuser AS-80PP Introduction

Category: Complementary Products - Tube Settler
Band: AquaSust

Model: AS-80PP

Size: 80mm

Gravity: 0.92g/cm3 Slope: 60°

tube settler For Recirculating Aquaculture Systems (RAS)

Tube Settler AS-80PP Advantage

Designed with a focus on easy installation and maintenance, the AS-80PP tube settler provides an efficient and convenient solution for water treatment projects. With its unique laminated plate structure, this settler not only optimizes floor space and improves settling efficiency, but also simplifies the installation process. The laminated design allows for a significant increase in the effective settling area per unit area, resulting in faster settling rates and improved water quality when treating large volumes of wastewater.

Tube Settler AS-80PP Application

In recirculating aquaculture systems (RAS), the AS-80PP tube settler, with its optimized design and efficient solids removal capacity, is a key technology for maintaining water quality and promoting aquatic animal health. With an inclined pipe configuration, it significantly increases the settling area and effectively removes fish waste, feed residues and other suspended particles from the water, thereby improving settling efficiency and reducing system energy consumption. In addition, the design reduces the need for chemical flocculants, further reducing operating costs and mitigating ecological impacts. The application of tube settlers not only ensures clean and stable aquaculture water, but also provides an environmentally friendly and cost-effective water treatment solution for the aquaculture industry, supporting the industry's move towards sustainability.

Parameter

Model	A	B	C	D	Material	Service Life	Surface Area
AS-25PP	30MM	20MM	<20MM	⌀25MM	pp+uv	5-10Year	>95m2/m3
AS-35PP	40MM	20MM	<20MM	⌀35MM	pp+uv	5-10Year	>95m2/m3
AS-50PP	60MM	28MM	<30MM	⌀50MM	pp+uv	5-10Year	>95m2/m3
AS-80PP	80MM	35MM	<45MM	⌀80MM	pp+uv	5-10Year	>95m2/m3
