Customized Tube Diffuser AS-TD63 | 2"Fine Bubble Tube Diffuser High Anti-clogging Performance and Corrosion resistance | For Municipal & Hospital Wastewater Secondary Treatment

FOB Price

US $10.0100 - 1000 piece

US $8.01001 - 10000 piece

group name: Tube Diffuser

Min Order: 100 piece

brand name: AquaSust Wastewater Treatment Solutions

model: AS-TD63

Nearest port for product export: shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Thu, 21 Nov 2024 17:44:31 GMT

contact supplier

Paramtents

Membrane Material EDPM, Rubber,Silica Gel
Connector 3/4"NPT male thread
Length 500/750/1000mm

Packging & Delivery

Min Order100 piece

Briefing

AS-TD63 Custom Tube Diffuser: Superior Anti-clogging & Corrosion Resistance for Municipal & Hospital Wastewater Treatment.

Detailed

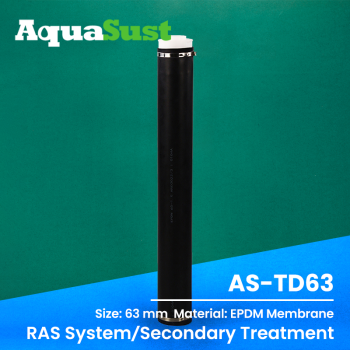

Tube Diffuser AS-TD63 Introduction

Category: Biochemical Tank -Aeration Diffuser
Band: AquaSust

Model: AS-TD63

Size: 63mm

Bubble type: Fine bubble

Material: EDPM, Rubber, Silica Gel

tube diffuser for Municipal & Hospital Wastewater Secondary Treatment

Tube Diffuser AS-TD63 Advantage

The AS-TD63 Fine Bubble Tube Diffuser is an indispensable component in water treatment facilities due to its high resistance to clogging and excellent corrosion resistance. The AS-TD63 Tube Diffuser produces extremely fine bubbles that dramatically increase the dissolution efficiency of oxygen in the water, resulting in improved treatment results. The AS-TD63 Tube Diffusers high resistance to clogging ensures stable operation even in water with a high content of suspended solids, eliminating the need for frequent maintenance and downtime due to clogging, and its excellent corrosion resistance allows it to be used for long periods of time in a wide range of environments, regardless of whether the water is acidic or alkaline. These features make the AS-TD63 Fine Bubble Tube Diffuser a highly efficient solution for the water treatment industry, saving energy and improving treatment efficiency while significantly reducing operating costs.

Tube Diffuser AS-TD63 Application

In the field of secondary treatment of municipal and hospital wastewater, AS-TD63 tube diffuser plays a key role, especially in the aeration process. These devices greatly increase the dissolution rate of oxygen by providing fine and uniform bubbles, thus promoting the activity of aerobic microorganisms and accelerating the biological decomposition of organic matter. In municipal wastewater treatment, AS-TD63 tube diffuser effectively reduces BOD, COD ,TSS, improves the quality of the effluent and ensures that it meets the environmental discharge standards. In hospital wastewater treatment, where wastewater contains complex components such as pathogens and pharmaceutical residues, the AS-TD63 tube diffuser not only helps to remove organic pollutants, but also controls the concentration of pathogens, reducing environmental and public health risks. The AS-TD63 tube diffuser's highly efficient oxygen transfer capability, excellent clogging resistance, and corrosion resistance, make it an excellent choice in Increased treatment efficiency and reduced operating costs make the AS-TD63 tube diffuser an indispensable technology choice for municipal and hospital wastewater treatment.

Parameter

Item number	AS-TD63	AS-TD93	AS-TD113
Bubble type	Fine Bubble	Fine Bubble	Fine Bubble
Tube diameter(mm)	63	93	113
Material	Special Formula EPDM with UV Protector import from Germany /Silicon Membrane
Material	Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS)
Length	500/750/1000mm
Connector	3/4NPT
Flow range(m³/h)	2-14	5-20	6-28
Bubble Size(mm)	1-2	1-2	1-2
Service Area(m²)	0.75-2.5	1.0-3.0	1.5-2.5
