Membrane Material EDPM, Rubber,Silica Gel
Connector 3/4"NPT male thread
Length 500/750/1000mm

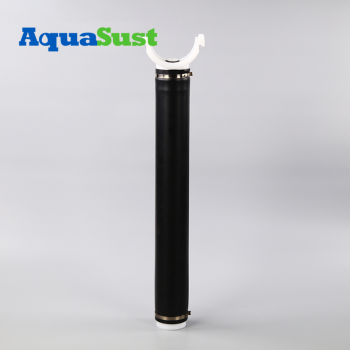

AS-TD93 Fine Bubble Tube Diffuser: Premium OEM/ODM solution for textile wastewater treatment.
Tube Diffuser AS-TD93 Introduction
Category: Biochemical Tank -Aeration Diffuser
Brand: AquaSust
Model: AS-TD93
Size: 93mm
Bubble type: Fine bubble
Material: EDPM, Rubber, Silica Gel
Tube Diffuser AS-TD93 Advantage
Known for its low pressure loss and high aeration efficiency, the 3-inch AS-TD93 Fine Bubble Tube Diffuser brings an innovative technology to the water treatment field. Low pressure loss means that the system has less resistance to overcome during bubble generation and distribution, which directly reduces energy consumption, resulting in greater energy efficiency. At the same time, high aeration efficiency ensures maximum oxygen solubility in the water column, accelerating microbial metabolism and effectively increasing organic matter decomposition rates. This technology is particularly suitable for applications requiring extensive biological treatment, such as municipal wastewater treatment, industrial wastewater treatment and hospital wastewater treatment, which not only significantly improves the treatment capacity and effluent quality, but also reduces operation and maintenance costs for the operator. With this efficient and cost-effective aeration method, the 3-inch Fine Bubble Tube Diffuser shows great potential for environmental protection and sustainable water management.
Tube Diffuser AS-TD93 Application
In the secondary treatment of textile and dye wastewater, the application of the AS-TD93 Tube Diffuser provides an efficient and reliable solution to the high organic loads and complex compositional problems that characterize these industries. These tube diffusers greatly enhance the dissolution rate and transport efficiency of oxygen by generating fine air bubbles, which are essential for activating and maintaining the microbial biota in the wastewater. These microorganisms rely on sufficient oxygen to break down organic dyes and other contaminants in the wastewater and convert them into safer, non-hazardous compounds. In this way, the AS-TD93 tube diffuser not only significantly improves the efficiency of textile and dye wastewater treatment, but also ensures that the process is environmentally friendly and economical. The efficient aeration system reduces energy consumption and lowers O&M costs, providing the textile and dye industry with a sustainable wastewater treatment technology.
Item number
|
AS-TD63
|
AS-TD93
|
AS-TD113 |
Bubble type | Fine Bubble
| Fine Bubble
| Fine Bubble |
Tube diameter(mm) | 63 | 93 | 113 |
Material | Special Formula EPDM with UV Protector import from Germany /Silicon Membrane
|
Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS)
|
Length | 500/750/1000mm
|
Connector | 3/4NPT
|
Flow range(m³/h) | 2-14
| 5-20
| 6-28 |
Bubble Size(mm) | 1-2
| 1-2
| 1-2 |
Service Area(m²) | 0.75-2.5
| 1.0-3.0
| 1.5-2.5 |
